HEAT NIPPERS (FOR CUTTING PLASTICS)

HT180

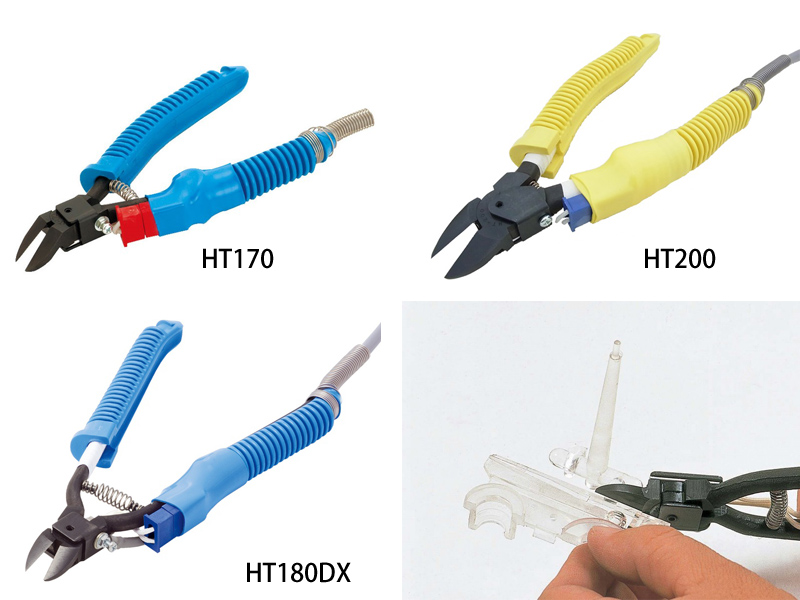

Heat Nippers and usage example

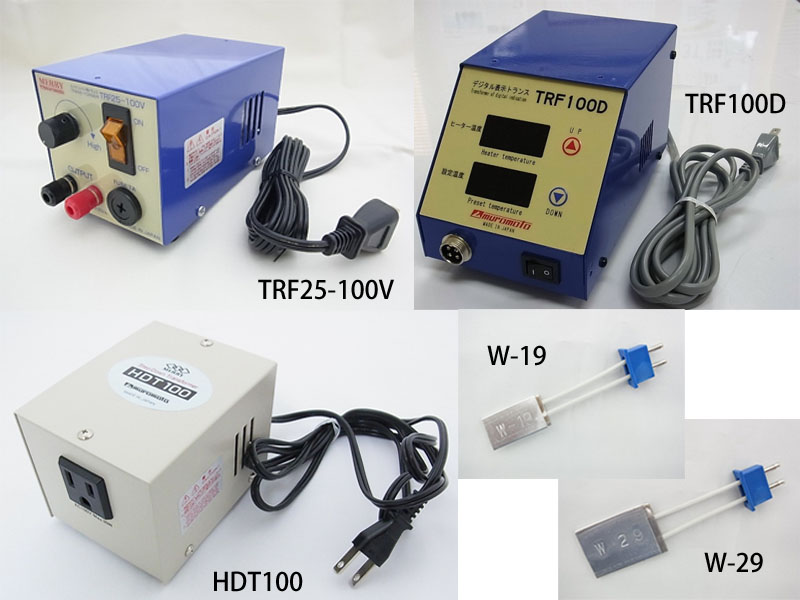

Transformer (TRF25-100V,TRF100D)
Step-Down Transformer (HDT100)
Heater (W-19,W-29)

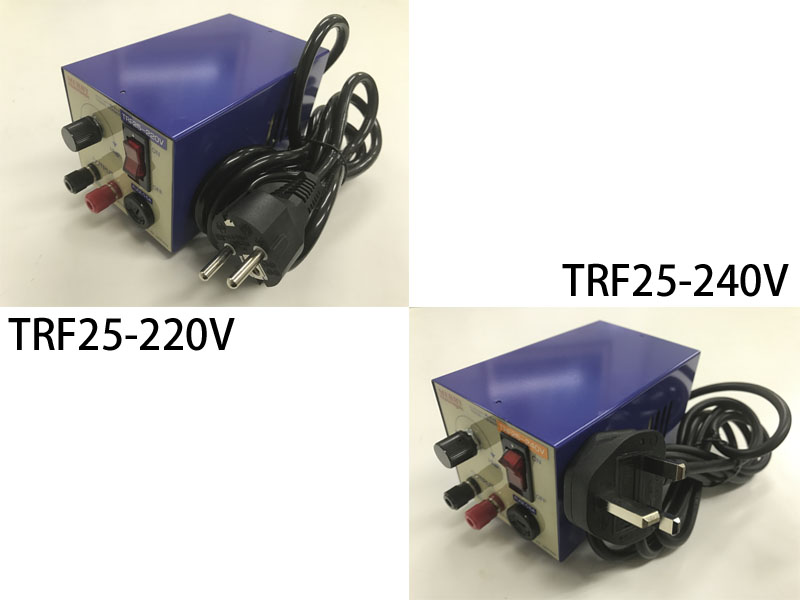

Transformer(TRF25-220V,TRF25-240V)

Cutting heat nippers are heated for easy cutting.

Part number / Price

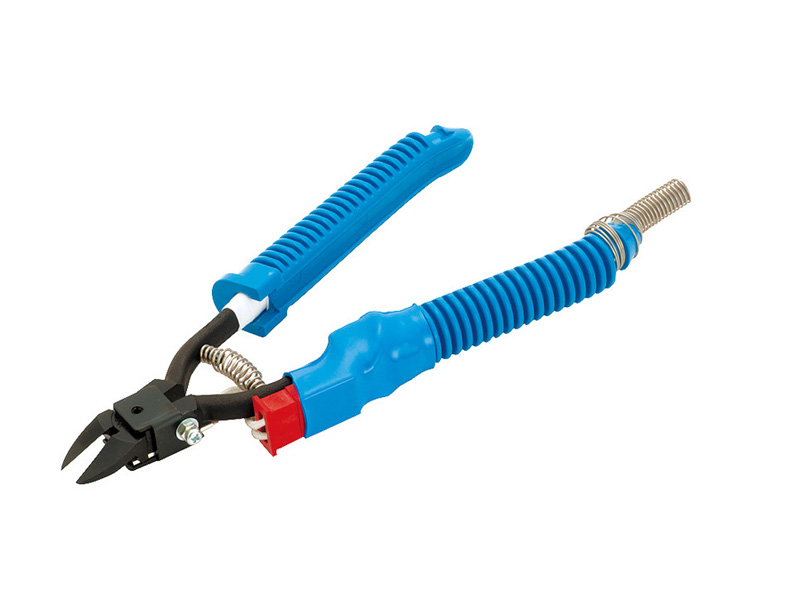

■HT180 (Standard type)
■HT200 (Heavy-duty type)

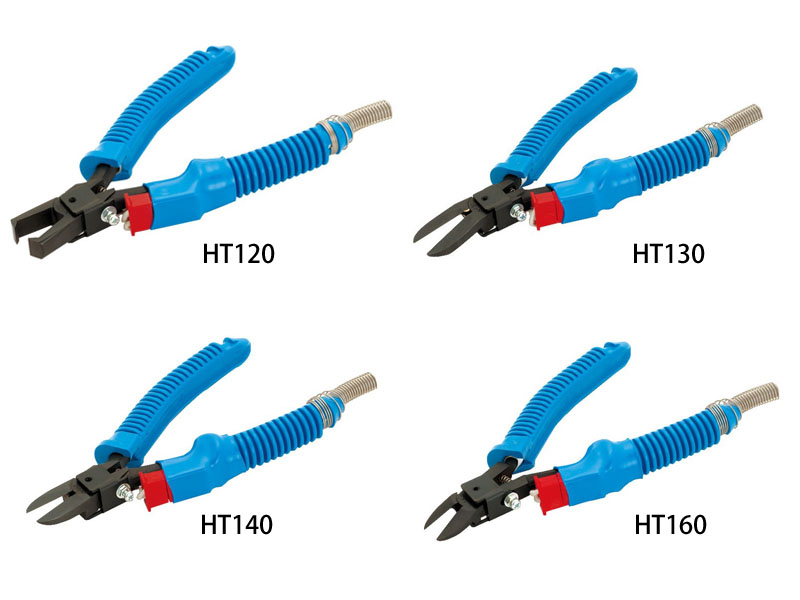

■HT120 (End cutting type)
■HT130 (Long blade type)
■HT140 (Flat blade type)
■HT160 (for cutting narrow spaces)
■HT170 (Angle blade type)
■HT180DX (Standard type / with sensor)

Feature

The built-in heater warms the blade edges for easier, crack-free cutting of fragile materials such as acrylics, styrene plastic, and glass resins.

These Heat nippers must be used with suitable transformer.

Spring loaded.

Cutting capacity:

[HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT180DX]φ4mm.

[HT200]φ7mm.

Heater type:

[W19] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT180DX.

[W29] for HT200.

Transformer type:

[TRF25-100V] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT200.

[TRF25-220V] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT200.

[TRF25-240V] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT200.

[TRF100D] for HT180DX.

Step-Down Transformer type:

[HDT100] for TRF25-100V .

Please see the PDF catalog for details. (blade length, weight, size etc.)
