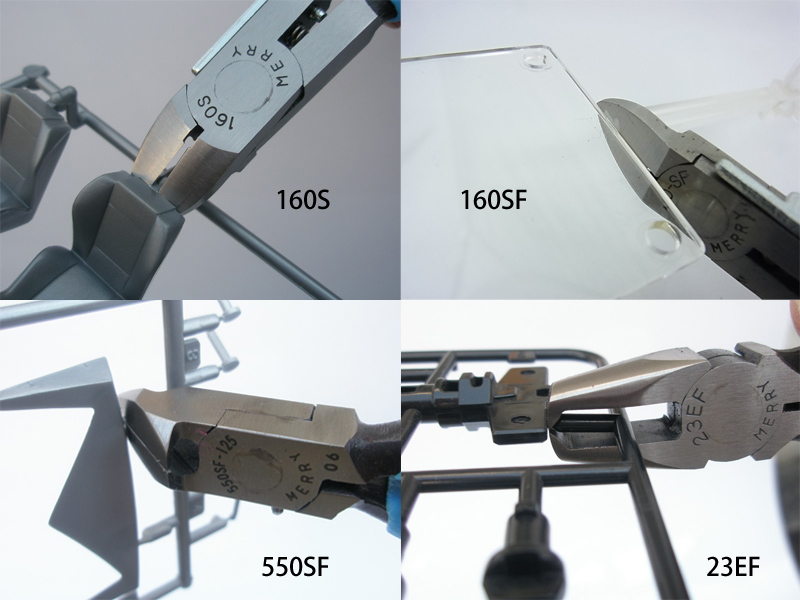

usage example for Plastic Nippers(1)

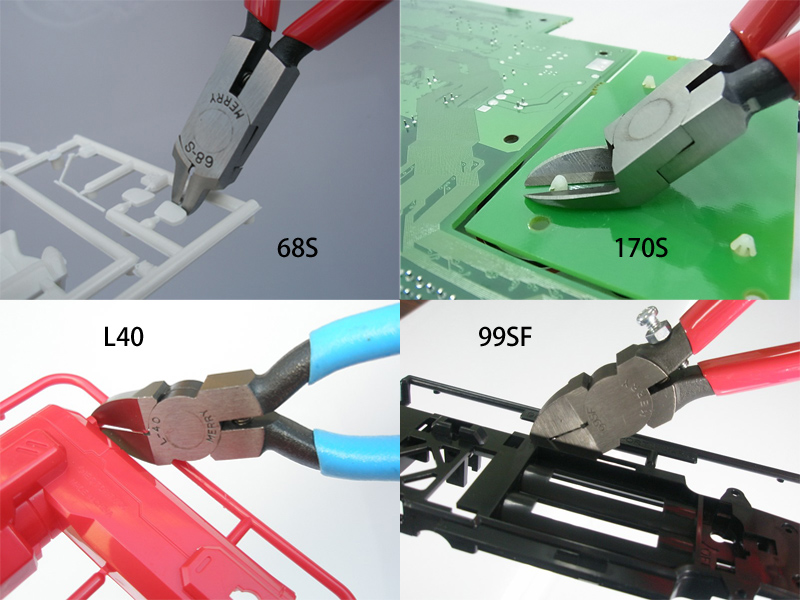

usage example for Plastic Nippers(2)
Plastic nipper is a tool to cut gate of molded resin products.
Part number / Price
■160S (high-plastic nippers / round type blade)
■160SF (high-plastic nippers / flat type blade)
■160SA (high-plastic nippers / angle type blade)
■160FW (high-plastic nippers / extra thin blade)
■66S (plastic nippers)
■99 / 99S / 99SF (heavy-duty plastic nippers)
■170S (angled plastic nippers)
■WA1000F (compound action plastic nippers)
■68S (narrow nose plastic nippers)
■PG20 (pin gate plastic nippers)
■2000EF / 23EF / 24EF / 25EF /26EF (end cutting plastic nippers)
■550SF (angle cutting plastic nippers)
■L40 (long handle plastic nippers)
■M11 / M12 (miniature plastic cutting nippers)
Feature
for nearly flush cutting of moulded plastic components from sprues.
with opening spring.
Cutting capacity:
[160S-125 / 160SF-125 / 160SA-125] φ3mm.
[160S-150 / 160SF-150 / 160SA-150] φ5mm.
[M11 / M12] φ3mm.
[160FW-125] φ2mm.
[160FW-150] φ4mm.
[66S-150] φ5mm.
[99-150 / 99S-150 / 99SF-150] φ8mm.
[99-175 / 99S-175 / 99SF-175] φ9mm.
[99-200 / 99S-200 / 99SF-200] φ10mm.
[170S-150] φ5mm.
[WA1000F] φ5mm.
[68S-125] φ2mm.
[PG20-125] φ1mm.
[2000EF / 23EF / 24EF / 25EF / 26EF] φ3mm.
[550SF-125] φ3mm.
[550SF-150] φ5mm.
[L40-190] φ5mm.
[M11 / M12] φ3mm.
Please see the PDF catalog for details. (size, weight etc.)
