Air Shot Hammer Series

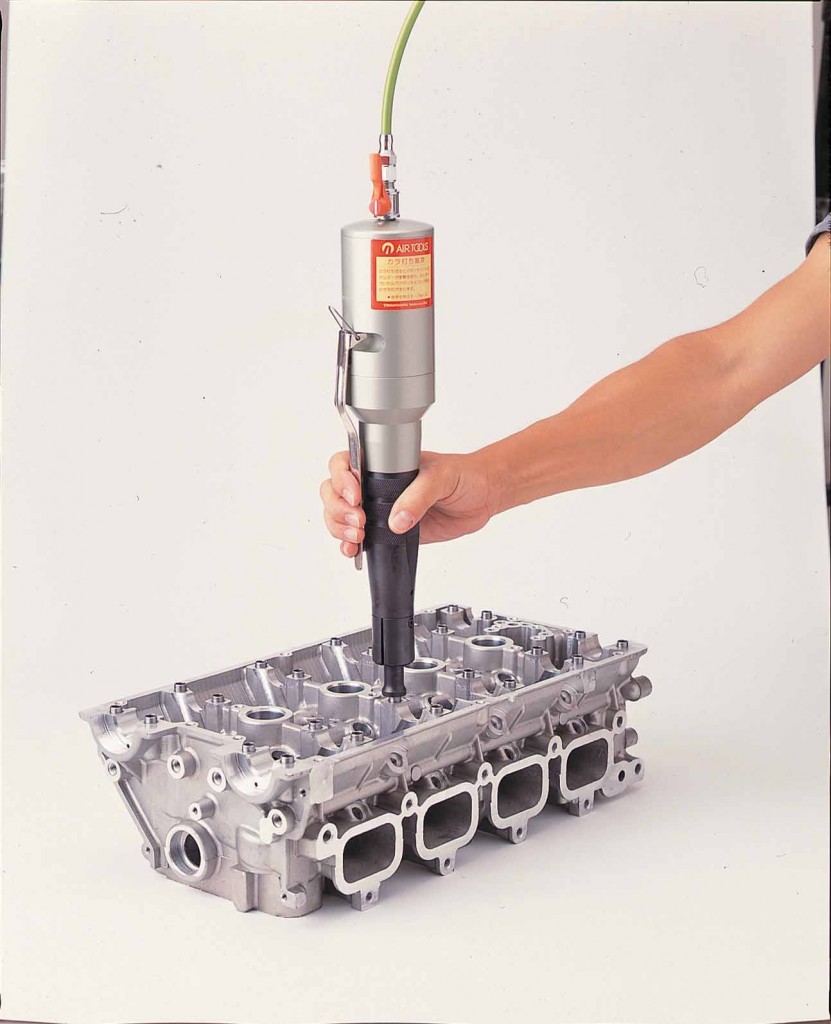

usage example for air shot hammer
AIR SHOT HAMMER simplify and quicken various inserting jobs of pins, bushings, color caps, oil seals, bearings, etc. in assembly lines.
Part number / Price
RH25 (Standard type)
RH80 (Standard type)
RH90 (Standard type)
RH100Z (Heavy duty type)
RH200 (Heavy duty type)

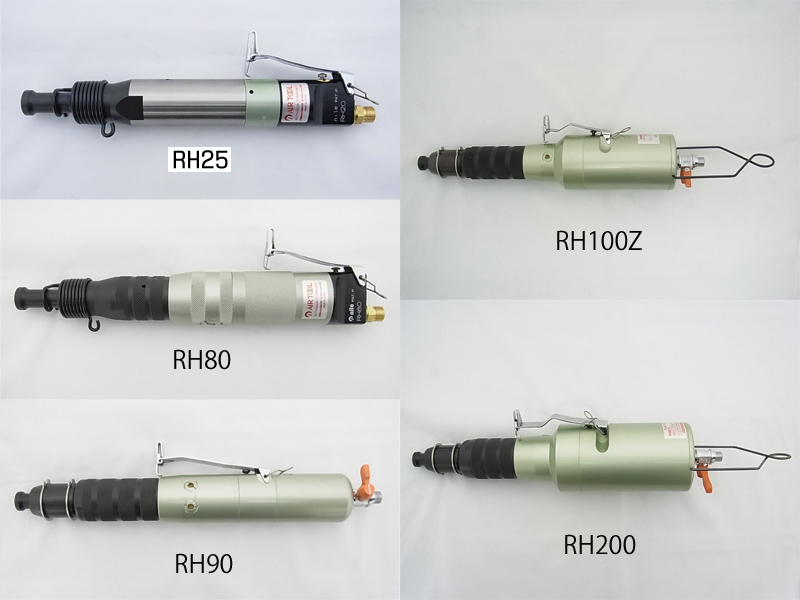

Feature
RH25
Overall length:213mm Weight:900g Grip size:φ37mm
Air consumption:135cm³/stroke Blowing power:(approx)360N
Recommended air pressure: 0.5～0.7MPa
RH80
Overall length:254mm Weight:1,300g Grip size:φ45mm
Air consumption:135cm³/stroke Blowing power:(approx)370N
Recommended air pressure: 0.5～0.7MPa

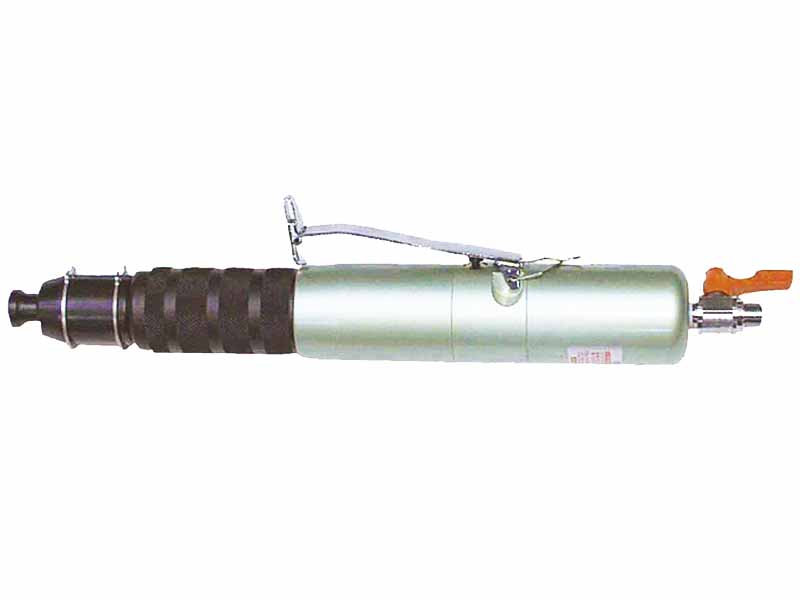

RH90
Overall length:328mm Weight:1,600g Grip size:φ43mm
Air consumption:651cm³/stroke Blowing power:(approx)460N
Recommended air pressure: 0.5～0.7MPa
RH100Z
Overall length:330mm Weight:2,100g
Grip size:φ43mm Tank size:φ72mm
Air consumption:651cm³/stroke Blowing power:(approx)470N
Recommended air pressure: 0.5～0.7MPa
RH200
Overall length:341mm Weight:2,100g
Grip size:φ51mm Tank size:φ86mm
Air consumption:653cm³/stroke Blowing power:(approx)620N
Recommended air pressure: 0.5～0.7MPa
Single blow (each operation of the lever generates one blow)
It can be used for stamping, riveting and chipping, by changing the attachments.
Optional accessories: Standard rivet snap (RVS85)
Please see the PDF catalog for details.
