CST35

It’s suitable for the high-speed stripping of the thin cable.

Stripping capacity : up to φ5mm outer dia.

Stripping length : 35mm

Weight : 7.4kg

Length : 270mm

Air Pressure : 0.5～0.6MPa

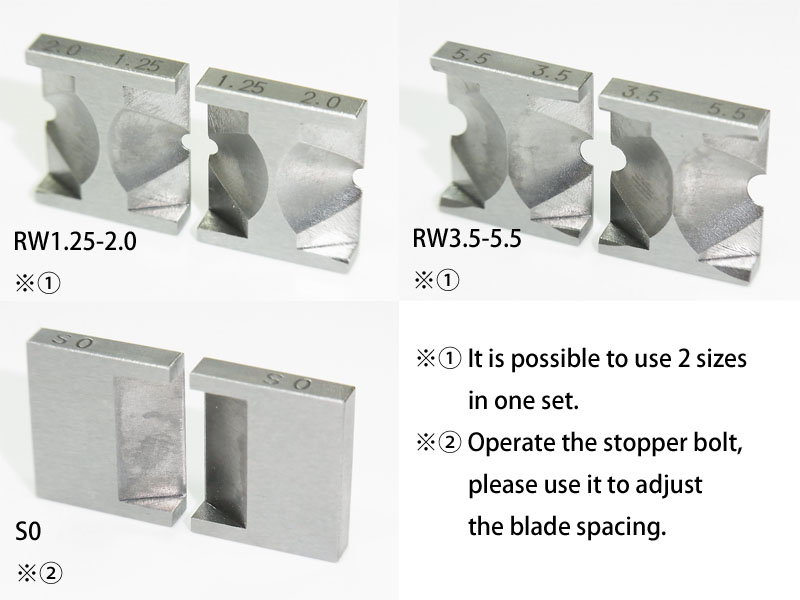

[Only the CST35 has standard spare blade set]

RW1.25-2.0 (for 1.25sq , 2.0sq)

RW3.5-5.5 (for 3.5sq , 5.5sq)

S0 (for S zero)



CST100

It can perform the complex stripping.

Stripping capacity : up to φ15mm outer dia.

Stripping length : 100mm

Weight : 13.5kg

Length : 420mm

Air Pressure : 0.5～0.6MPa



CST110

Safety cover is attached. It can smoothen the discharge of waste.

Stripping capacity : up to φ15mm outer dia.

Stripping length : 100mm

Weight : 21kg

Length : 470mm

Air Pressure : 0.5～0.6MPa



CST120

It is suitable for stripping of large diameter cable.

Stripping capacity : up to φ30mm outer dia.

Stripping length : 100mm

Weight : 43kg

Length : 490mm

Air Pressure : 0.5～0.6MPa



[Optional blade]

R-type : standard blade

D-type : for oval-shape cables

S-type : for cables of small diameter

V-type : for cables of with core wire of small diameter



[Order procedure]

Please send us a drawing or processing sample, a cable that stripping.

↓

We select the model and submit the estimate of the spare blade.

↓

Please order it after estimate confirmation.



※Blades are made to order basically. At the time of order, a sample cable (approximately 1m) is necessary by all means.



Please see the PDF catalog for details.
